Flashings for Solar Thermal Installations
The specialty flashings for solar thermal installations.
Forming part of the SolarDek™ range, our purpose-made solutions for Solar Thermal applications allow for pipes and cables to pass through the roof to the solar panel, ensuring a water-tight seal. The penetrating pipes and cables are individually flashed to maximize safety and eliminate wear that could occur from friction between the cables, pipes, and the roof tiles often seen in non-purpose-made solutions.
Product Information
| Cable ExternalThe external diameter of the individual penetrating cable and number of penetration points | Pipe ExteralThe external diameter of the individual penetrating cable and number of penetration points | Roof PitchThe pitch of roof (degrees) the product can be used on | Base SizeThe size of the products base in mm | Base TypeThe type of materials used to form the base. | Roof TypeThe roof type this product is suitable for | ColourThe colour of the product | Max TempThe maximum temperature the product can be used at consistantly. | Part No. | Product Image |
|---|---|---|---|---|---|---|---|---|---|
| 4-8mm | 0-35mm (x2) | 0-45° | 490 x 410mm | Nu-Lead | Tile / Slate | Grey | 200°C | DNLS200MPG |  |
| 4-8mm | 0-35mm | 0-45° | 490 x 410mm | Nu-Lead | Tile / Slate | Black | 115°C | DNL100B |  |
| 4-8mm | 0-35mm | 0-45° | 450 x 600mm | Aluminium | Tile / Slate | Black | 115°C | SDAMINI |  |
| 4-8mm | 0-35mm | 0-45° | 100 x 100mm | Rubber | Metal | Red | 200°C | DFE200RES |  |
| 4-8mm | 0-35mm | 0-45° | 100 x 100mm | Rubber | Metal | Grey | 115°C | DFE100GS |  |

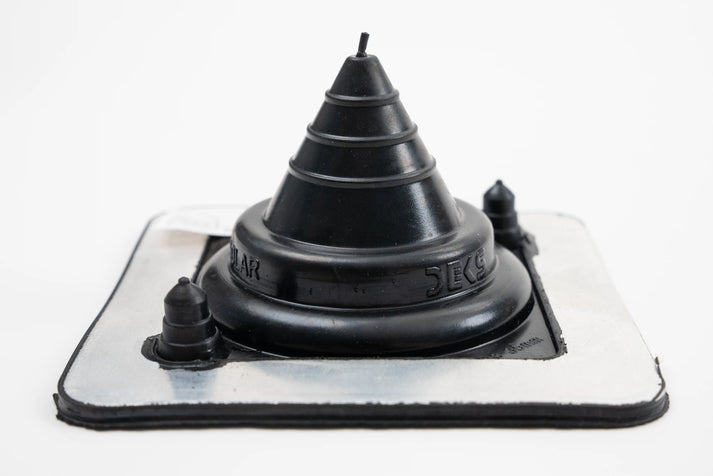

| 4-8mm | 0-35mm | 0-45° | 100 x 100mm | Rubber | Metal | Black | 115°C | DFE100BS |  |
| 4-8mm | 5-55mm | 0-45° | 139 x 139mm | Rubber | Metal | Red | 200°C | DFE201RES |  |
| 4-8mm | 5-55mm | 0-45° | 139 x 139mm | Rubber | Metal | Grey | 115°C | DFE101GS |  |
| 4-8mm | 5-55mm | 0-45° | 139 x 139mm | Rubber | Metal | Black | 115°C | DFE101BS |  |
